Опис

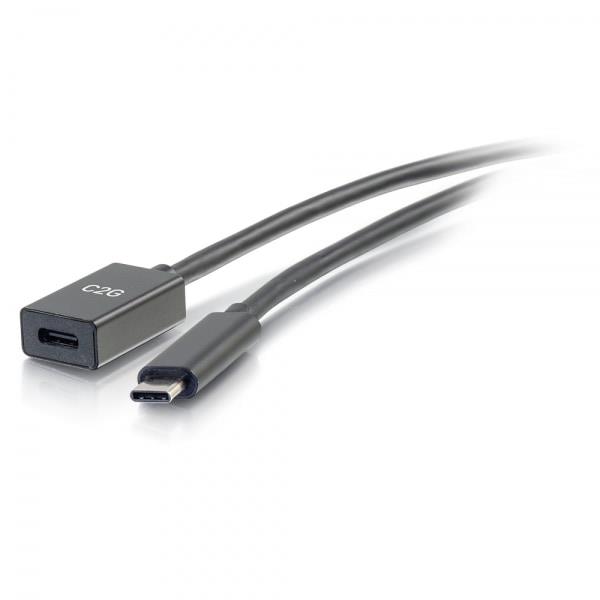

• USB-C Male to USB-C Female connection
• Data transfer speeds up to 10Gbps
• 3A charging output
• Compatible with USB-C and Thunderbolt™ 3 ports
• Reversible, symmetrical USB-C connector
Electrical Specifications
• USB 3.1 ~ [32AWG (7/0.08TC)+EAM]*4P+32AWG(7/0.08TC)*2P+32AWG(7/0.08TC)*4C+24AWG(41/0.08TC)+EAB(16*10/0.08TC 85%TC)OD:4.5mm ~ Black
• Rated Temperature: 80°C ; Voltage: 30V
• Conductor Resistance: At 20°C max 32AWG: 588.5 OHMS/KM
• Insulation Resistance: 10M-KM min at 20°C DC 500V.(EIA—364—21)
• Dielectric Strength: AC 500V/1 Minute No Breakdown.(EIA—364—20)
Physical Specifications
• Operating Temperature: 0 ~ +50°C; 15-85% RH (Non-Condensing)
• Storage Temperature: -25 ~ +70°C; 15-85% RH (Non-Condensing)
• Connector: P1: USB3.1 C Type Male: Contacts Terminal Gold Flash, Nickel Plated Shell; Black Insulation
• Connector: P2: USB3.1 C Type Female: Contacts Terminal Gold Flash, Nickel Plated Shell; Black Insulation
• Molding Material: P1: Black PVC Conform RoHS
• Molding Material: P2: Black PVC Conform RoHS
• Product is CE marked and conforms to 2011/65/EU RoHS2
